Alembic Bain Marie 100 liters Complete GIN BOX

🥃 100 Liters Bain Marie Alembic Complete GIN BOX

We present the “100 Liters Bain Marie Alembic Complete GIN BOX”, ideal for distilling using the bain-marie method and obtaining a high-quality distillate, preventing the product from sticking to the boiler.

🛠️ Manufacturing Materials

• 🧡 2 mm copper sheet with hammered finish
• ✨ Brass handles and nuts
• 🛡️ Welded joints for maximum strength and durability

📏 Capacities and Yields

• 🧪 Total capacity: 110 liters
• 🥛 Usable capacity: 100 liters
• ⏱️ Distillation time: 3–4 hours
• 📊 Standard yield: 10–15% (10–15 liters per distillation)

🔍 Yields by Method

• ❌ Without rectifier: 10–15 liters at ~45% Alcoholics
• ✔️ With rectification: 8–10 liters at ~75% Alcoholics

(Data based on a wash with 10% alcohol.)

🎁 Included Accessories

This alembic comes fully equipped with:

• 🌡️ 2 large thermometers (0–120º)
• 🧪 Large alcoholmeter (0–100º)
• 🥣 Alcoholmeter stand
• 🔥 Separation grid to prevent solids from sticking to the bottom
• 🚰 Discharge tube with 2″ valve (stainless steel or brass)
• 🟠 46 cm gas burner specially designed for this model
• 🔍 Rectification lens for purer, higher-proof alcohol
• 🧱 Iron supports on the boiler, Gin box and the condenser

🍸 GIN BOX – Additional Accessory

It also includes the GIN BOX, an essential accessory for those wishing to distill gin through steam extraction or infusion. It comes with a botanical basket that allows for unique aromas and flavors during distillation.

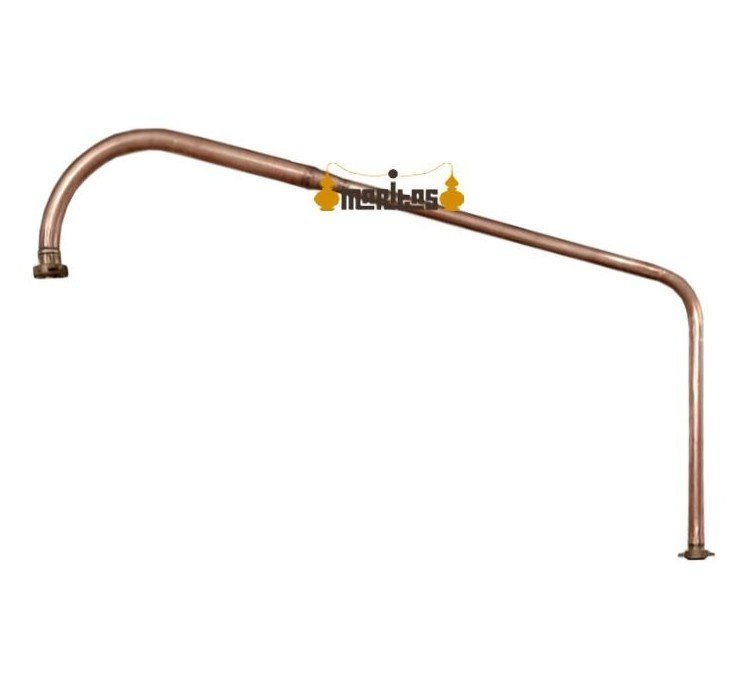

Finally, a transfer tube is included to allow distillation without the GIN BOX.

⭐ Advantages of the Bain-Marie Alembic

• 💧 Water seal between boiler and helmet → up to 20% higher yield
• 🥣 Double boiler for true bain-marie distillation
• ❄️ Helmet–condenser system that improves distillate quality
• 🔧 Fully welded to prevent leaks even at high temperatures
• ⚡ Faster distillation than other models
• 🧱 High resistance to impacts and wear
• 🧼 Easy to clean and handle
